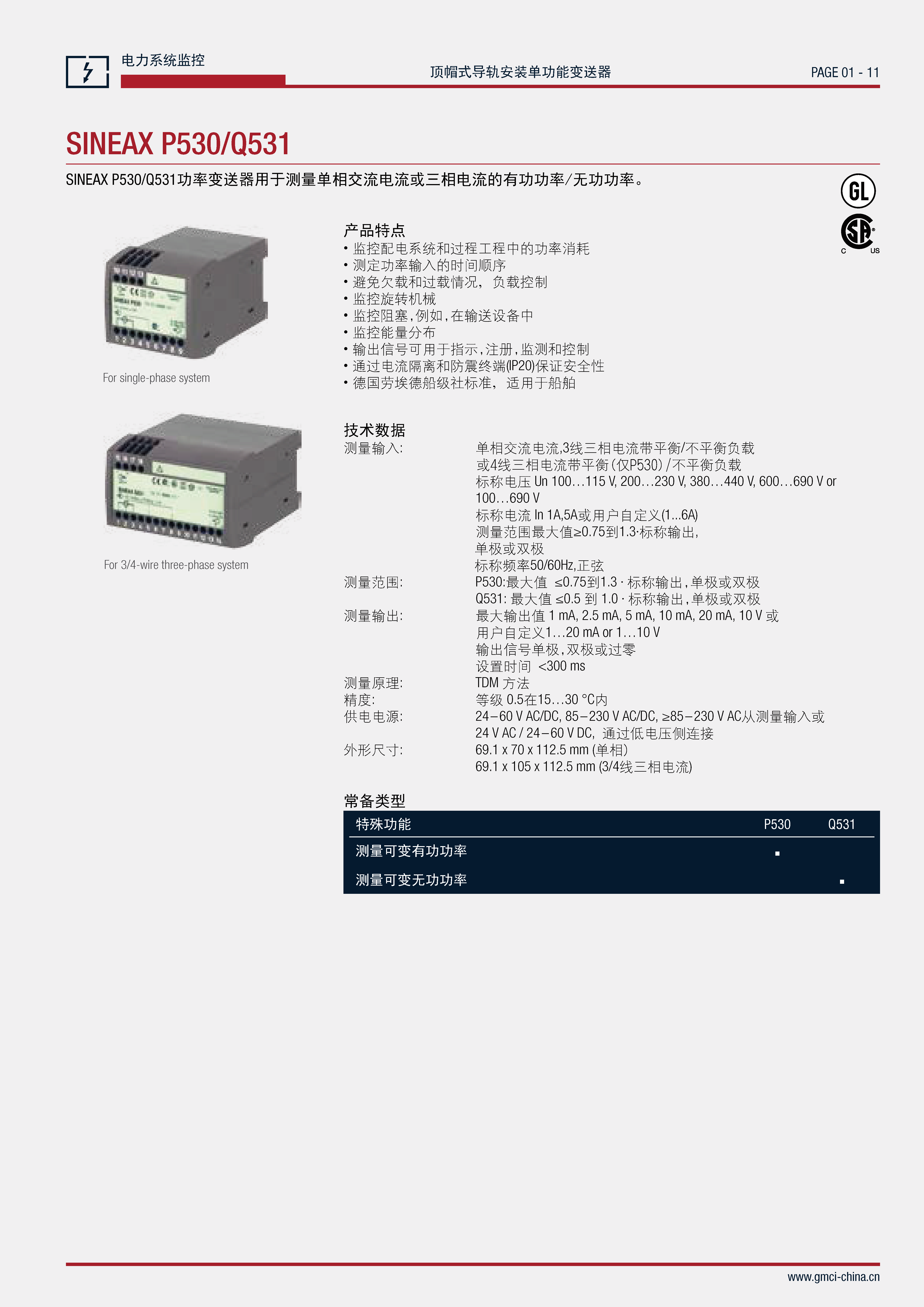

功率變送器SINEAX Q531產品介紹：

功率變送器SINEAX Q531用于測量單相交流電流或三相電流的有功功率/無功功率

功率變送器SINEAX Q531產品特點：

☆ 監控配電系統和過程工程中的功率消耗

☆ 測定功率輸入的時間順序

☆ 避免欠載和過載情況，負載控制

☆ 監控旋轉機械

☆ 監控阻塞,例如.在輸送設備中

☆ 監控能量分布

☆ 輸出信號可用于指示,注冊，監測和控制

☆ 通過電流隔離和防震終端IP20)保證安全性

☆ 德國勞埃德船級社標準，適用于船舶

功率變送器SINEAX Q531技術數據：

測量輸入:                            單相交流電流,3線三相電流帶平衡/不平衡負載

                                            或4線三相電流帶平衡(僅P530)/不平衡負載

                                            標稱電壓 Un 100...115 V 200...230 V 380...40 V, 600...690 Vor100...690 V

                                            標稱電流In 1A5A或用戶自定義(1...6A)

                                            測量范圍極大值z0.75到1.3·標稱輸出

                                            單級或雙極

                                            標稱頻率50/60Hz,正弦

測量范圍:                             P530:極大值 s0.75到1.3·標稱輸出，單極或雙極

                                            Q531:極大值 s0.5 到1.0·標稱輸出單極或雙極

測量輸出:                             極大輸出值1mA,2.5mA,5mA,10 mA, 20m,10V或

                                            用戶自定義1...20 mAor 1...10V

                                            輸出信號單極,雙極或過零

                                            設時間 <300 ms

測量原理:                            TDM 方法

精度:                                    等級0.5在15...30C內

供電電源:                             24-60VAC/DC,85-230 VAC/DC,285-230 V AC從測量輸入或24VAC/24-60VDC，通過低電壓側連接

外形尺寸:                             69.1 X70x112.5 mm(單相)

                                            69.1 x 105 x 112.5 mim (3/4線三相豐流)
